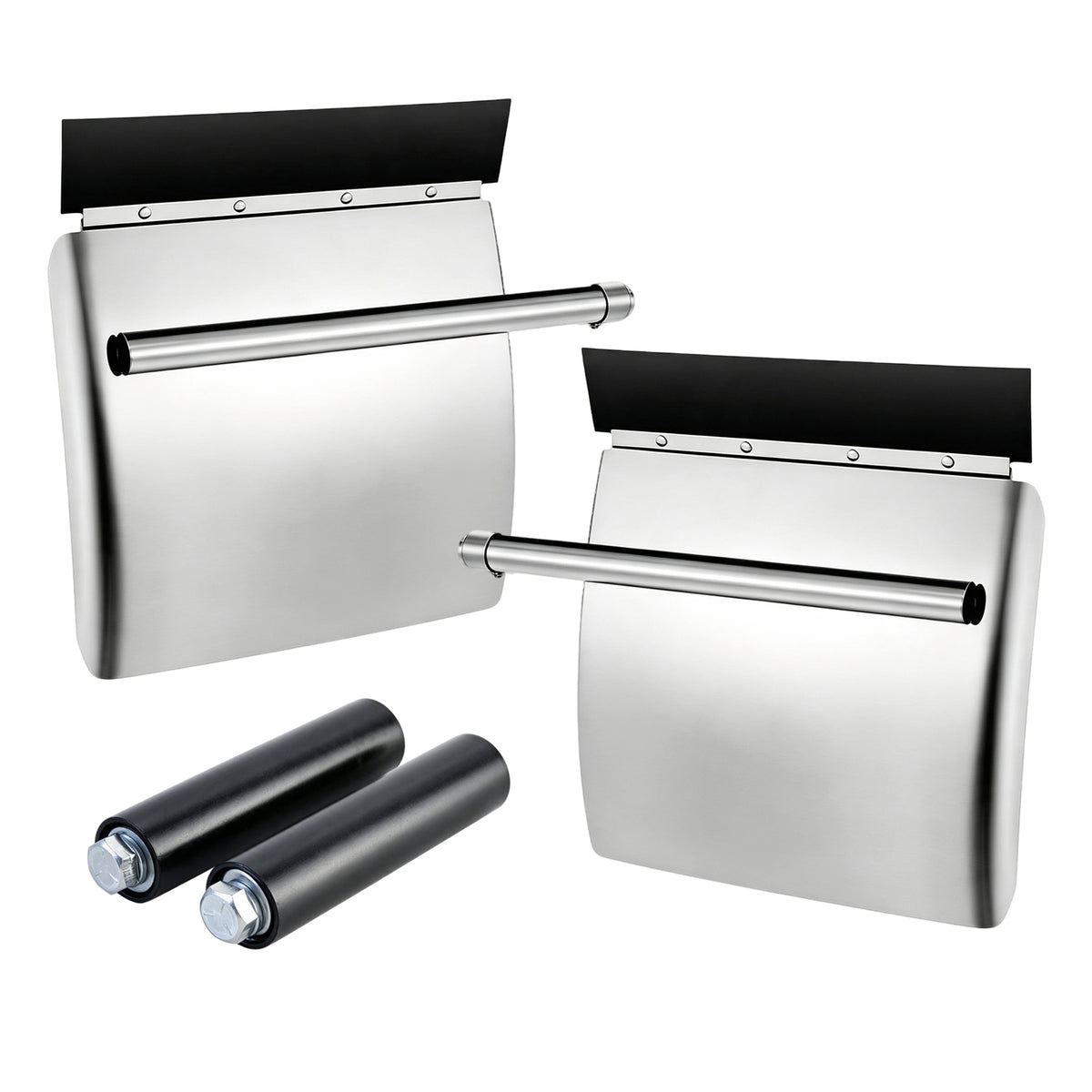

24"x24" Polished Stainless Steel Quarter Fender Pair, Semi Truck Mud Guards with Rubber Reinforced Shock Tubes & Full Mount Hardware

Overview

Upgrade your semi truck with this heavy-duty 24"×24" stainless steel quarter fender kit. This pair comes with rubber shock absorber tubes to absorb vibration and reduce shaking during highway driving.

Made from mirror polished 430 stainless steel, these quarter fenders protect your tractor, frame and trailer from mud, road spray, gravel, snow and ice kicked up by rear tires. All brackets, bolts and rubber components are included for direct installation.

Compatible Truck Models

Fits most standard semi‑trucks with rear axle mud flap mounting brackets, including:

• Kenworth (T680, T880, W900, T660)
• Peterbilt (389, 579, 567, 386)
• Freightliner (Cascadia, Classic XL, Columbia)
• International (LT, ProStar, 9900i)
• Volvo (VNL, VNX)
• Mack (Anthem, Pinnacle, Granite)
• Western Star (4900, 5700XE)

⚠️ Before ordering: Please confirm the fender size (24"×24") fits your mounting area. This is an aftermarket part, not OEM. Professional installation recommended.

Key Features

✅ Mirror Polished 430 Stainless Steel Construction Premium 430 stainless steel with mirror polished finish. Rustproof, scratch and wear resistant. Maintains shiny appearance under rain, snow, salt and high-temperature road environments.

✅ Rubber Shock Absorber Reinforcement Tubes Includes 2 black rubber shock absorber tubes that absorb vibration and buffer road impact, reducing shaking and noise during long-distance highway travel and extending fender service life.

✅ 24" × 24" Curved Quarter Fender Design Curved shield shape efficiently manages road spray around the wheel area. Stops mud, rocks, grit and slush splashing onto your truck frame, fuel tanks and trailer.

✅ Complete Hardware Kit Included Full set of mounting accessories and rubber top flaps included. Everything needed for installation in one package.

✅ All-Weather Heavy Duty Performance Stands up to rainy, snowy, muddy and hot desert road conditions. Reliable protection year-round.

Installation Steps

1. Remove old mud flaps or quarter fenders and clean the mounting area.
2. Slide rubber shock absorber tubes onto the cross bars before assembly.
3. Attach stainless cross bars (with shock tubes) to the quarter fender panel using included hardware.
4. Slide rubber top flap onto the top edge of the fender.
5. Position the assembly against the truck frame bracket and secure with bolts, nuts and washers — hand-tighten first.
6. Adjust angle for optimal tire clearance and splash coverage, then torque snug.
7. Check all fasteners after first 100 miles of driving.

Estimated installation time: 30–45 minutes per side. Basic hand tools required (wrench, socket set).

Specifications

• Material: 430 Stainless Steel, Mirror Polished
• Fender Size: 24 in × 24 in (60.96 cm × 60.96 cm)
• Cross bar length: 27.8 in (70.62 cm)
• Rubber flap height: 4.3 in (10.93 cm)
• Shock absorber tube height: 8 in (20.32 cm)

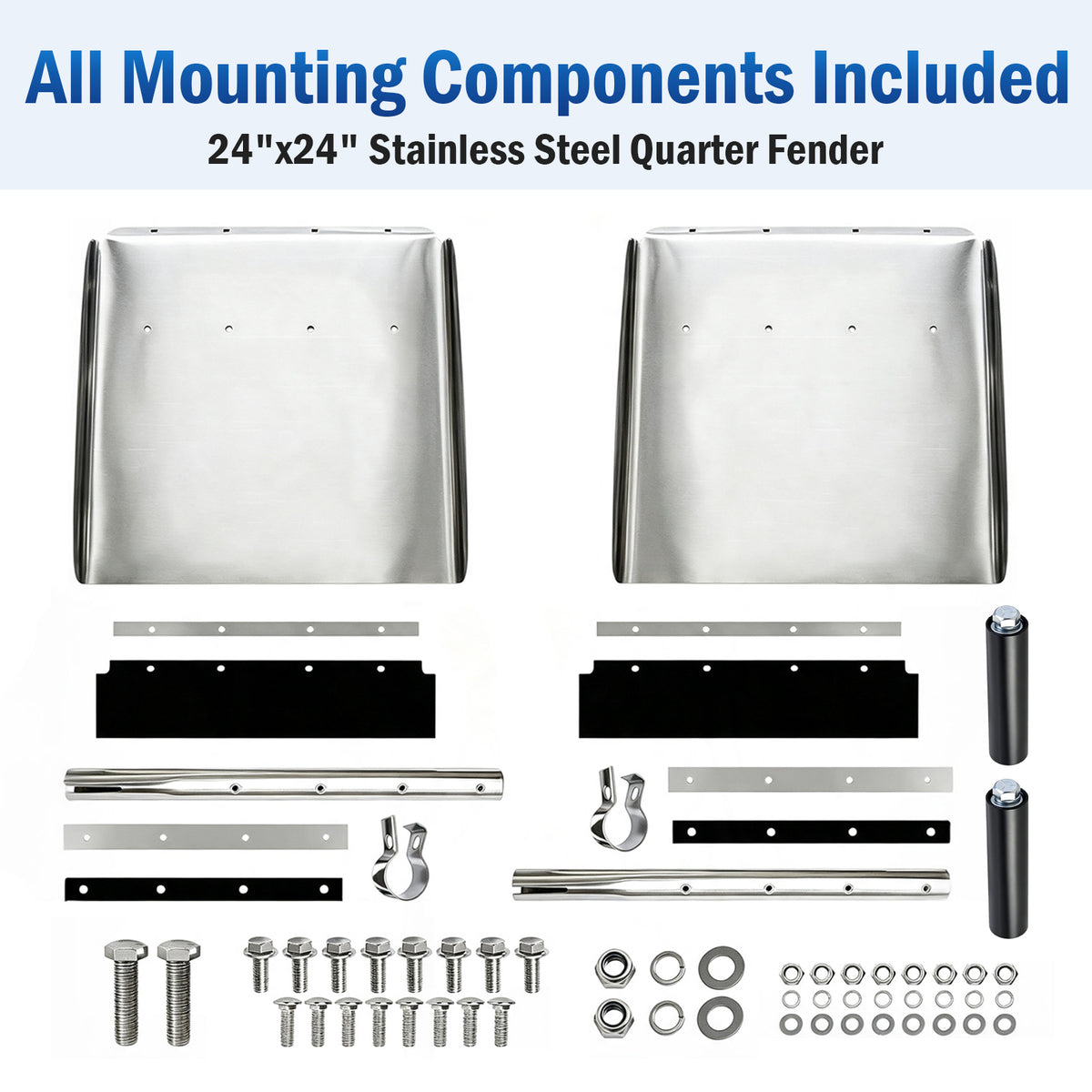

What's In The Box

• 2 × 24"×24" Stainless Steel Quarter Fenders
• 2 × Rubber top flaps
• 2 × Stainless cross bars
• 2 × Rubber Shock Absorber Tubes
• All mounting brackets, bolts, nuts and washers

Why Choose Our Reinforced Quarter Fenders

Standard mud guards vibrate heavily on rough roads, leading to loosening and premature damage. Our upgraded version adds rubber shock absorber tubes to cushion impact and cut vibration. Thick stainless steel resists rust from winter road salt and keeps mirror shine for years. Full hardware included for hassle-free installation.
